Eoptolink DWDM XFP transceivers are available in channels defined in the ITU Grid (100 GHz spacing), from Channel 19 to Channel 61, or ITU Grid (50Ghz spacing), from channel 200 to 592ch. Eoptolink currently offers DWDM XFP optics for 10G networking at ranges between 40km, 80km. DWDM XFP 120km is under development now. DWDM stands for Dense Wavelength-Division Multiplexing. It is a technology which multiplexes a number of different “colored” optical signals together. These systems are popular with telecommunications companies because they allow them to expand the capacity of the network without laying more fiber. More recently, smaller ISP’s have been using this equipment as well; they will rent or buy “dark fiber” and by utilizing DWDM they can put more traffic over the same line. Eoptolink has industry fastest lead time on DWDM 10G transceivers in different for factors.
1 / 2
2 / 2

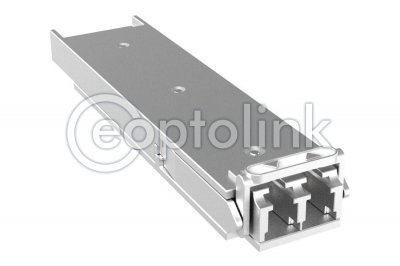

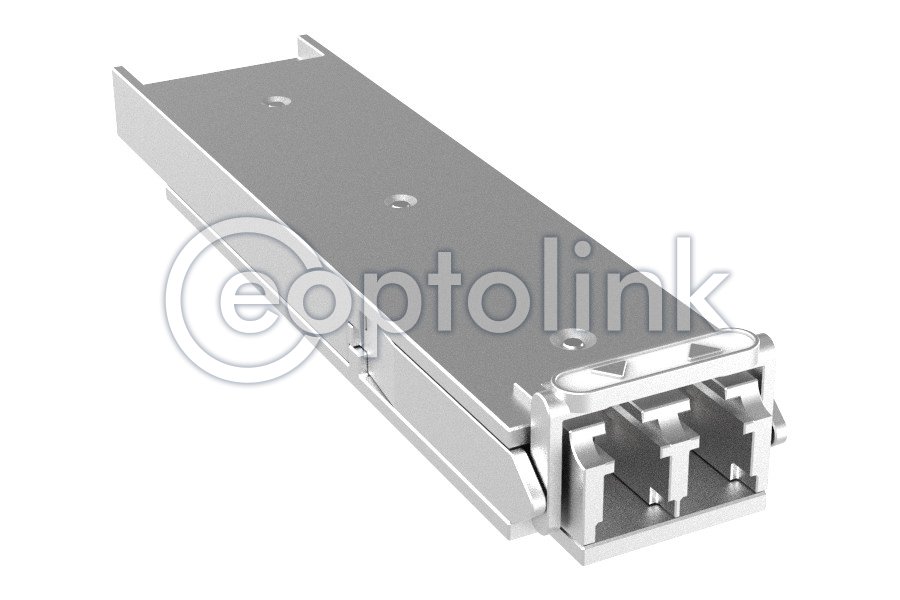

10G DWDM XFP
- Supports 9.95Gb/s to 11.1Gb/s bit rates
- DWDM 100Ghz or DWDM 50Ghz
- Can be used with single fiber DWDM system and dual fiber DWDM system
- Hot-pluggable XFP footprint
- Maximum link length of 80km
- Cooled DWDM EML laser.
- Duplex LC connector
- Low Power dissipation
- Built-in digital diagnostic functions, DDMI
- Temperature range -5°C to 70°C
- RoHS, CE, FDA, FCC, TUV, UL certifact
- 9.95G SONET/SDH
- 10.3G Ethernet
- 10.5G Fiber Channel
- 10.7G SONET/SDH+FEC
- 11.1G Ethernet+FEC
- 11.3G 10GFC+FEC
- DWDM networks
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLX-1696-14XX | DWDM XFP ER | 9.95~11.1G | DWDM 100GHz | 14dB | LC | C |
| EOLX-1696-14XXE | DWDM XFP ER | 9.95~11.1G | DWDM 100GHz | 14dB | LC | E |
| EOLX-1696-23XX | DWDM XFP ZR | 9.95~11.1G | DWDM 100GHz | 23dB | LC | C |
| EOLX-1696-14XXX | DWDM XFP ER | 9.95~11.1G | DWDM 50GHz | 14dB | LC | C |
| EOLX-1696-23XXX | DWDM XFP ZR | 9.95~11.1G | DWDM 50GHz | 23dB | LC | C |
For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLX-1680-14XX | DWDM 8G XFP ER | 8.5G | DWDM 100GHz | 14dB | LC | C |
| EOLX-1680-14XX-I | DWDM 8G XFP ER | 8.5G | DWDM 100GHz | 14dB | LC | I |
| EOLX-1680-24XX | DWDM 8G XFP ZR | 8.5G | DWDM 100GHz | 24dB | LC | C |
For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLX-1696-14XXDR | DWDM Dual Rate XFP ER | 8.5~11.1G | DWDM 100GHz | 14dB | LC | C |
| EOLX-1696-23XXDR | DWDM Dual Rate XFP ZR | 8.5~11.1G | DWDM 100Ghz | 23dB | LC | C |
| EOLX-1696-14XXXDR | DWDM Dual Rate XFP ER | 8.5~11.1G | DWDM 50GHz | 14dB | LC | C |
| EOLX-1696-23XXXDR | DWDM Dual Rate XFP ZR | 8.5~11.1G | DWDM 50GHz | 23dB | LC | C |
For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
Eoptolink DWDM XFP 100GHz and DWDM XFP 50GHz:
| Channel | DWDM XFP 80km ZR 100GHz | DWDM XFP 40km ER 100GHz | Frequency (THz) | Center Wavelength (nm) |
| 17 | EOLX-1696-2317 | EOLX-1696-1417 | 191.7 | 1563.86 |
| 18 | EOLX-1696-2318 | EOLX-1696-1418 | 191.8 | 1563.05 |
| 19 | EOLX-1696-2319 | EOLX-1696-1419 | 191.9 | 1562.23 |
| 20 | EOLX-1696-2320 | EOLX-1696-1420 | 192 | 1561.42 |
| 21 | EOLX-1696-2321 | EOLX-1696-1421 | 192.1 | 1560.61 |
| 22 | EOLX-1696-2322 | EOLX-1696-1422 | 192.2 | 1559.79 |
| 23 | EOLX-1696-2323 | EOLX-1696-1423 | 192.3 | 1558.98 |
| 24 | EOLX-1696-2324 | EOLX-1696-1424 | 192.4 | 1558.17 |
| 25 | EOLX-1696-2325 | EOLX-1696-1425 | 192.5 | 1557.36 |
| 26 | EOLX-1696-2326 | EOLX-1696-1426 | 192.6 | 1556.55 |
| 27 | EOLX-1696-2327 | EOLX-1696-1427 | 192.7 | 1555.75 |
| 28 | EOLX-1696-2328 | EOLX-1696-1428 | 192.8 | 1554.94 |
| 29 | EOLX-1696-2329 | EOLX-1696-1429 | 192.9 | 1554.13 |
| 30 | EOLX-1696-2330 | EOLX-1696-1430 | 193 | 1553.33 |
| 31 | EOLX-1696-2331 | EOLX-1696-1431 | 193.1 | 1552.52 |
| 32 | EOLX-1696-2332 | EOLX-1696-1432 | 193.2 | 1551.72 |
| 33 | EOLX-1696-2333 | EOLX-1696-1433 | 193.3 | 1550.92 |
| 34 | EOLX-1696-2334 | EOLX-1696-1434 | 193.4 | 1550.12 |
| 35 | EOLX-1696-2335 | EOLX-1696-1435 | 193.5 | 1549.32 |
| 36 | EOLX-1696-2336 | EOLX-1696-1436 | 193.6 | 1548.51 |
| 37 | EOLX-1696-2337 | EOLX-1696-1437 | 193.7 | 1547.72 |
| 38 | EOLX-1696-2338 | EOLX-1696-1438 | 193.8 | 1546.92 |
| 39 | EOLX-1696-2339 | EOLX-1696-1439 | 193.9 | 1546.12 |
| 40 | EOLX-1696-2340 | EOLX-1696-1440 | 194 | 1545.32 |
| 41 | EOLX-1696-2341 | EOLX-1696-1441 | 194.1 | 1544.53 |
| 42 | EOLX-1696-2342 | EOLX-1696-1442 | 194.2 | 1543.73 |
| 43 | EOLX-1696-2343 | EOLX-1696-1443 | 194.3 | 1542.94 |
| 44 | EOLX-1696-2344 | EOLX-1696-1444 | 194.4 | 1542.14 |
| 45 | EOLX-1696-2345 | EOLX-1696-1445 | 194.5 | 1541.35 |
| 46 | EOLX-1696-2346 | EOLX-1696-1446 | 194.6 | 1540.56 |
| 47 | EOLX-1696-2347 | EOLX-1696-1447 | 194.7 | 1539.77 |
| 48 | EOLX-1696-2348 | EOLX-1696-1448 | 194.8 | 1538.98 |
| 49 | EOLX-1696-2349 | EOLX-1696-1449 | 194.9 | 1538.19 |
| 50 | EOLX-1696-2350 | EOLX-1696-1450 | 195 | 1537.4 |
| 51 | EOLX-1696-2351 | EOLX-1696-1451 | 195.1 | 1536.61 |
| 52 | EOLX-1696-2352 | EOLX-1696-1452 | 195.2 | 1535.82 |
| 53 | EOLX-1696-2353 | EOLX-1696-1453 | 195.3 | 1535.04 |
| 54 | EOLX-1696-2354 | EOLX-1696-1454 | 195.4 | 1534.25 |
| 55 | EOLX-1696-2355 | EOLX-1696-1455 | 195.5 | 1533.47 |
| 56 | EOLX-1696-2356 | EOLX-1696-1456 | 195.6 | 1532.68 |
| 57 | EOLX-1696-2357 | EOLX-1696-1457 | 195.7 | 1531.9 |
| 58 | EOLX-1696-2358 | EOLX-1696-1458 | 195.8 | 1531.12 |
| 59 | EOLX-1696-2359 | EOLX-1696-1459 | 195.9 | 1530.33 |
| 60 | EOLX-1696-2360 | EOLX-1696-1460 | 196 | 1529.55 |
| 61 | EOLX-1696-2361 | EOLX-1696-1461 | 196.1 | 1528.77 |
| Channel | DWDM XFP 80km ZR 50GHz | DWDM XFP 40km ER 50GHz | Frequency (THz) | Center Wavelength (nm) |
| 200 | EOLX-1696-23200 | EOLX-1696-14200 | 192 | 1561.42 |
| 205 | EOLX-1696-23205 | EOLX-1696-14205 | 192.05 | 1561.01 |
| 210 | EOLX-1696-23210 | EOLX-1696-14210 | 192.1 | 1560.61 |
| 215 | EOLX-1696-23215 | EOLX-1696-14215 | 192.15 | 1560.2 |
| 220 | EOLX-1696-23220 | EOLX-1696-14220 | 192.2 | 1559.79 |
| 225 | EOLX-1696-23225 | EOLX-1696-14225 | 192.25 | 1559.39 |
| 230 | EOLX-1696-23230 | EOLX-1696-14230 | 192.3 | 1558.98 |
| 235 | EOLX-1696-23235 | EOLX-1696-14235 | 192.35 | 1558.58 |
| 240 | EOLX-1696-23240 | EOLX-1696-14240 | 192.4 | 1558.17 |
| 245 | EOLX-1696-23245 | EOLX-1696-14245 | 192.45 | 1557.77 |
| 250 | EOLX-1696-23250 | EOLX-1696-14250 | 192.5 | 1557.36 |
| 255 | EOLX-1696-23255 | EOLX-1696-14255 | 192.55 | 1556.96 |
| 260 | EOLX-1696-23260 | EOLX-1696-14260 | 192.6 | 1556.55 |
| 265 | EOLX-1696-23265 | EOLX-1696-14265 | 192.65 | 1556.15 |
| 270 | EOLX-1696-23270 | EOLX-1696-14270 | 192.7 | 1555.75 |
| 275 | EOLX-1696-23275 | EOLX-1696-14275 | 192.75 | 1555.34 |
| 280 | EOLX-1696-23280 | EOLX-1696-14280 | 192.8 | 1554.94 |
| 285 | EOLX-1696-23285 | EOLX-1696-14285 | 192.85 | 1554.54 |
| 290 | EOLX-1696-23290 | EOLX-1696-14290 | 192.9 | 1554.13 |
| 295 | EOLX-1696-23295 | EOLX-1696-14295 | 192.95 | 1553.73 |
| 300 | EOLX-1696-23300 | EOLX-1696-14300 | 193 | 1553.33 |
| 305 | EOLX-1696-23305 | EOLX-1696-14305 | 193.05 | 1552.93 |
| 310 | EOLX-1696-23310 | EOLX-1696-14310 | 193.1 | 1552.52 |
| 315 | EOLX-1696-23310 | EOLX-1696-14310 | 193.15 | 1552.12 |
| 320 | EOLX-1696-23320 | EOLX-1696-14320 | 193.2 | 1551.72 |
| 325 | EOLX-1696-23325 | EOLX-1696-14325 | 193.25 | 1551.32 |
| 330 | EOLX-1696-23330 | EOLX-1696-14330 | 193.3 | 1550.92 |
| 335 | EOLX-1696-23335 | EOLX-1696-14335 | 193.35 | 1550.52 |
| 340 | EOLX-1696-23340 | EOLX-1696-14340 | 193.4 | 1550.12 |
| 345 | EOLX-1696-23345 | EOLX-1696-14345 | 193.45 | 1549.72 |
| 350 | EOLX-1696-23350 | EOLX-1696-14350 | 193.5 | 1549.32 |
| 355 | EOLX-1696-23355 | EOLX-1696-14355 | 193.55 | 1548.91 |
| 360 | EOLX-1696-23360 | EOLX-1696-14360 | 193.6 | 1548.51 |
| 365 | EOLX-1696-23365 | EOLX-1696-14365 | 193.65 | 1548.11 |
| 370 | EOLX-1696-23370 | EOLX-1696-14370 | 193.7 | 1547.72 |
| 375 | EOLX-1696-23375 | EOLX-1696-14375 | 193.75 | 1547.32 |
| 380 | EOLX-1696-23380 | EOLX-1696-14380 | 193.8 | 1546.92 |
| 385 | EOLX-1696-23385 | EOLX-1696-14385 | 193.85 | 1546.52 |
| 390 | EOLX-1696-23390 | EOLX-1696-14390 | 193.9 | 1546.12 |
| 395 | EOLX-1696-23395 | EOLX-1696-14395 | 193.95 | 1545.72 |
| 400 | EOLX-1696-23400 | EOLX-1696-14400 | 194 | 1545.32 |
| 405 | EOLX-1696-23405 | EOLX-1696-14405 | 194.05 | 1544.92 |
| 410 | EOLX-1696-23410 | EOLX-1696-14410 | 194.1 | 1544.53 |
| 415 | EOLX-1696-23415 | EOLX-1696-14415 | 194.15 | 1544.13 |
| 420 | EOLX-1696-23420 | EOLX-1696-14420 | 194.2 | 1543.73 |
| 425 | EOLX-1696-23425 | EOLX-1696-14425 | 194.25 | 1543.33 |
| 430 | EOLX-1696-23430 | EOLX-1696-14430 | 194.3 | 1542.94 |
| 435 | EOLX-1696-23435 | EOLX-1696-14435 | 194.35 | 1542.54 |
| 440 | EOLX-1696-23440 | EOLX-1696-14440 | 194.4 | 1542.14 |
| 445 | EOLX-1696-23445 | EOLX-1696-14445 | 194.45 | 1541.75 |
| 450 | EOLX-1696-23450 | EOLX-1696-14450 | 194.5 | 1541.35 |
| 455 | EOLX-1696-23455 | EOLX-1696-14455 | 194.55 | 1540.95 |
| 460 | EOLX-1696-23460 | EOLX-1696-14460 | 194.6 | 1540.56 |
| 465 | EOLX-1696-23465 | EOLX-1696-14465 | 194.65 | 1540.16 |
| 470 | EOLX-1696-23470 | EOLX-1696-14470 | 194.7 | 1539.77 |
| 475 | EOLX-1696-23475 | EOLX-1696-14475 | 194.75 | 1539.37 |
| 480 | EOLX-1696-23480 | EOLX-1696-14480 | 194.8 | 1538.98 |
| 485 | EOLX-1696-23485 | EOLX-1696-14485 | 194.85 | 1538.58 |
| 490 | EOLX-1696-23490 | EOLX-1696-14490 | 194.9 | 1538.19 |
| 495 | EOLX-1696-23495 | EOLX-1696-14495 | 194.95 | 1537.79 |
| 500 | EOLX-1696-23500 | EOLX-1696-14500 | 195 | 1537.4 |
| 505 | EOLX-1696-23505 | EOLX-1696-14505 | 195.05 | 1537 |
| 510 | EOLX-1696-23510 | EOLX-1696-14510 | 195.1 | 1536.61 |
| 515 | EOLX-1696-23515 | EOLX-1696-14515 | 195.15 | 1536.22 |
| 520 | EOLX-1696-23520 | EOLX-1696-14520 | 195.2 | 1535.82 |
| 525 | EOLX-1696-23525 | EOLX-1696-14525 | 195.25 | 1535.43 |
| 530 | EOLX-1696-23530 | EOLX-1696-14530 | 195.3 | 1535.04 |
| 535 | EOLX-1696-23535 | EOLX-1696-14535 | 195.35 | 1534.64 |
| 540 | EOLX-1696-23540 | EOLX-1696-14540 | 195.4 | 1534.25 |
| 545 | EOLX-1696-23545 | EOLX-1696-14545 | 195.45 | 1533.86 |
| 550 | EOLX-1696-23550 | EOLX-1696-14550 | 195.5 | 1533.47 |
| 555 | EOLX-1696-23555 | EOLX-1696-14555 | 195.55 | 1533.07 |
| 560 | EOLX-1696-23560 | EOLX-1696-14560 | 195.6 | 1532.68 |
| 565 | EOLX-1696-23565 | EOLX-1696-14565 | 195.65 | 1532.29 |
| 570 | EOLX-1696-23570 | EOLX-1696-14570 | 195.7 | 1531.9 |
| 575 | EOLX-1696-23575 | EOLX-1696-14575 | 195.75 | 1531.51 |
| 580 | EOLX-1696-23580 | EOLX-1696-14580 | 195.8 | 1531.12 |
| 585 | EOLX-1696-23585 | EOLX-1696-14585 | 195.85 | 1530.72 |
| 590 | EOLX-1696-23590 | EOLX-1696-14590 | 195.9 | 1530.33 |
| 595 | EOLX-1696-23595 | EOLX-1696-14595 | 195.95 | 1529.94 |
