800G

  1. You are here:
  2. Home
  3. Product solutions
  4. 800G
  5. 800G LPO OSFP

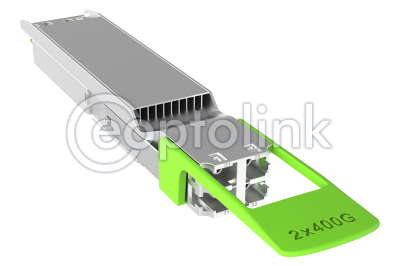

LPO OSFP 2x400G FR4

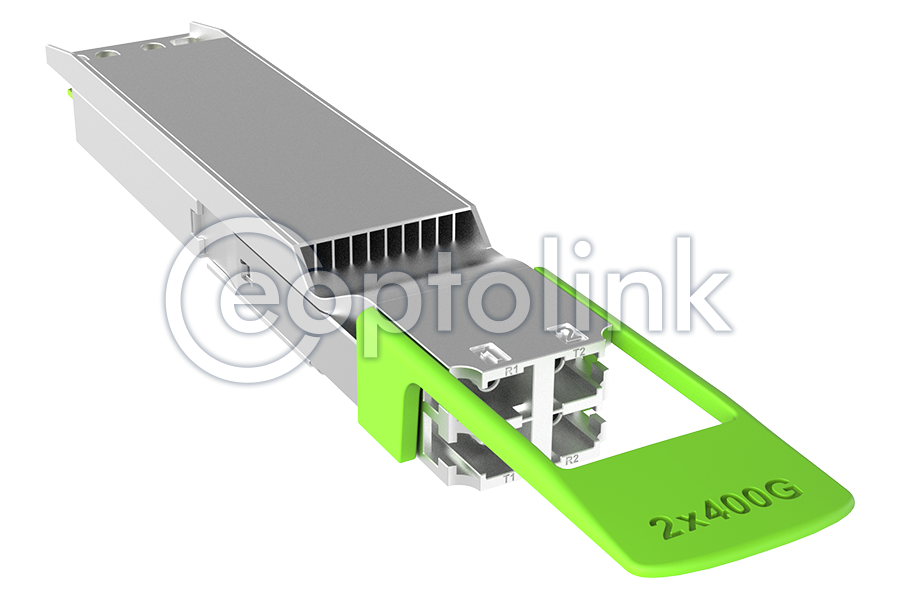

LPO OSFP 2x400G FR4
1 / 2
LPO OSFP 2x400G DR4
2 / 2

800G LPO OSFP

Eoptolink OSFP 800G LPO transceivers are compliant to the latest releases of the OSFP MSA. The firmware supports CMIS 5.0 and newer release. We offer transceivers for 2xDR4, 2xFR4 interfaces. Our vertical integration for optical engines enables leading performance and per consumption.

    • Supports 850Gb/s
    • Single 3.3V Power Supply
    • OSFP MSA Compliant
    • 106.25Gbps (PAM4)
    • 53.125Gbps (PAM4)
    • 25.78125Gbps (NRZ)
    • Commercial case temperature range of 0°C to 70°C
    • CMIS 5.0 or later version
    Part No. Description Data Rate Wavelength Distance Connector T.range
    EOLO-138HG-5H-xDxLx OSFP 2x400G DR4 8x100G 800GbE 1310nm 500m 2xMPO-12 C
    EOLO-168HG-02-SLx OSFP 2x400G FR4 8x100G 800GbE CWDM 2km 2×LC C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
